An underground wire locator instrument helps in accurately locating the path of the underground wires. It also measures the accurate depth of the invisible underground wires. An underground wire locator comprises two parts - a transmitter and a receiver. An AC generator that supplies the signal current to the underground cable to be traced is a transmitter. The transmitter may typically set the signal at a particular frequency.
The transmitter places an electrical signal on the traced cable, while that signal is picked up by the receiver, allowing the locator operator to track the direction of the signal and follow the located cable.
There are many models of underground cable locators on the market. If you are wondering what is the best underground wire locator?
In this article, we will be looking at some of the best underground wire locators available in the market with detailed specifications including the advantages and disadvantages.
What is the best underground wire locator?

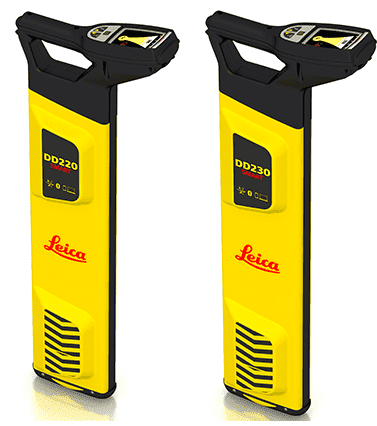

First, we’ll be looking at the Leica DD 230 SMART Utility Locators Solution. This tool is designed to automatically identify underground assets deeper, faster, and more accurately. All of these tools come with the state of the art latest DX Shield software.Â

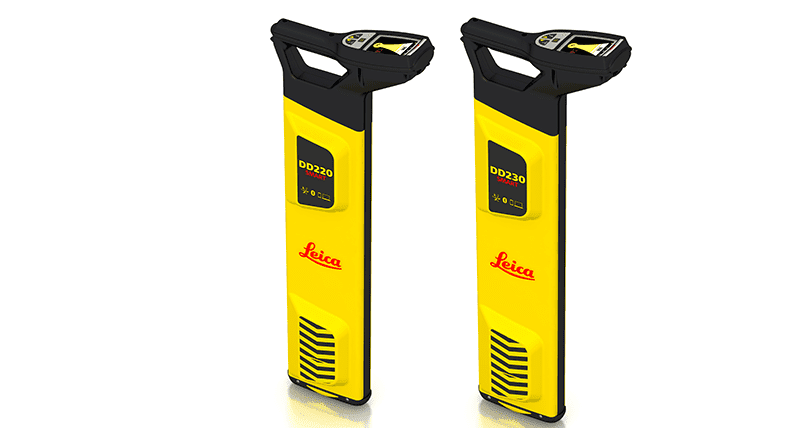

Leica DD 230 Smart Utility Locators Solution
Leica DD 230 Smart Utility Locators Solution
This is the only tool available in the market which is the complete portfolio of detection solutions for utility professionals and anyone who is breaking ground. The Leica DD SMART utility locator series uses industry-leading digital signal processing to give you the most accurate results. The DD220/230 SMART locators are scalable and designed with the latest Bluetooth technology, providing a wire-free connection to field controllers and mobile devices. To be more productive and efficient, this is our best choice for underground wire locators.
This product is slightly cheaper than the 230 series but comes with almost all the functionality of the same. You can consider this product if you don’t require the accuracy of the 230 series.Â
How do you use an underground wire locator?
Understanding the basic principles of an underground wire locator is important. It will prepare you to effectively use Leica’s underground wire locators. It will enhance your ability to determine target location, target depth, and tracing distance. There are two methods of underground wire and pipe location. Both of which require the underground wire to conduct electricity. It simply means they must be metallic.
Active Locating
Active locating is regarded as the first method. Since a transmitter is used to impose an electric current on the piper cable to circulate. For detecting the field produced by the current, a receiver is used.
Locating passively:
The second technique is referred to as passive locating. Because a field formed by the current that is already circulating on the cable is identified by the receiver. It does not need any transmitter.
Active locating allows you to build an electrical circuit that can flow through the current. This can be done with three different forms of connections.
These connections are known as active modes.
The three connecting active modes are direct. Also known as conductive, inductive, and inductive clamps. The direct mode generates the greatest amount of current and increases the success of localization. Less current is generated by the inductive clamp mode. But when the lack of access to the underground pipe or wire prevents you from using the direct mode, it's a reasonable option.
First, take the clip attached to the red cable. Apply it directly to the wire you are trying to locate. Make sure there is a good metal-to-metal contact.
The next step is to position a ground stake as close to 90 degrees as possible to the expected line location path. Press the stake deep into the ground to increase surface contact with the soil.
Once the ground stake is in position, apply the clip attached to the black cable to the ground stake. This is to complete the circuit. It’s important to complete the circuit by properly implementing aground. In general the better the ground the better the signal.
Now a current will flow through underground wire. As the signal travels it gradually leaks into the ground and diminishes the further it gets from the transmitter. One of the keys to getting a good signal is applying the proper frequency.
If conditions are good, good conductor connections, and soil conditions. The current will travel farther at the lowest frequency with less leakage to adjacent structures. An increase in frequency will cause the signal to leak sooner and cover less distance. As a rule, always start with the lowest frequency possible.
Gradually increase it as needed. Remember at higher frequencies, the current will leak to the ground quicker. Which might impact your ability to locate underground utilities.
Examine the Basics of Electromagnetic Detection
Underground wire locators use electromagnetic detection to find buried utilities. These devices generate a magnetic field that interacts with the conductors in underground wires, pipes, or cables. The strength and direction of this field help pinpoint the location and depth of buried objects.
The process involves transmitting a radio signal through the ground and detecting its reflection. Different frequencies are used for various types of utilities and soil conditions. Higher frequencies work well for shallow burials, while lower frequencies penetrate deeper into the ground.
Modern wire locators from reputable brands incorporate advanced sound technology to aid in detection. These devices emit distinct audio tones that change in pitch and volume as the operator moves closer to the buried utility, enhancing accuracy and efficiency in the field.
Differentiate Between Active and Passive Locating Methods
Active locating methods involve using a transmitter to send a signal through the wire or pipe, which is then detected by a receiver. This technique provides precise location data and is often used with tools like metal detectors or specialized underground wire locators. Active methods are particularly effective for locating non-energized lines or pet fence systems.
Passive locating relies on detecting existing electromagnetic fields generated by live power lines or radio frequency signals. This method doesn't require a transmitter and can be useful for initial sweeps of an area. However, it may not be as accurate as active methods and might miss non-energized lines. Some advanced tools combine passive detection with multimeter functionality for enhanced utility.
The choice between active and passive methods depends on the specific job requirements and site conditions. Professional locators often use a combination of both techniques, employing tools with backlights for better visibility in low-light conditions. This comprehensive approach ensures the most accurate and efficient location of underground utilities.
Understanding how underground wire locators work is crucial. Now, let's focus on selecting the right one for your specific needs.
Choose the Ideal Underground Wire Locator for Your Needs
Selecting the right underground wire locator involves evaluating key features and comparing leading models. This section examines essential factors like transmitter power, cathodic protection capabilities, and signal generator options. It also explores top brands, considering aspects such as leak detection and camera integration, to help professionals make informed decisions for their specific needs.
Identify Key Features to Consider
When choosing an underground wire locator, professionals should consider devices with integrated flashlights and lighting features. These additions enhance visibility in low-light conditions, improving accuracy and safety during locating tasks. Some advanced models also include thermometers, allowing operators to monitor ambient temperature and adjust settings accordingly.
Irrigation system compatibility is another crucial feature to evaluate. Wire locators designed for use with irrigation systems can detect buried sprinkler wires and valves, streamlining maintenance and repair processes. This specialized functionality proves invaluable for landscaping professionals and property managers.
Noise reduction technology significantly impacts locator performance. High-quality underground wire locators incorporate noise filtering systems that minimize interference from nearby power sources or equipment. This feature ensures clearer signals and more precise readings, especially in urban or industrial environments where electromagnetic noise is prevalent.
Compare Leading Models and Brands
Quinn Equipment offers a range of underground wire locators suitable for various applications, including yard work and plumbing projects. Their devices feature advanced steel detection capabilities, making them ideal for locating buried utilities in diverse soil conditions, including sand. These locators utilize capacitor technology for improved sensitivity and accuracy.
Leica GeoSystems, a brand carried by Quinn Equipment, produces high-quality underground wire locators known for their durability and precision. Their models excel in challenging environments, such as construction sites with complex underground infrastructure. Leica's locators often incorporate multi-frequency options, allowing operators to adapt to different utility types and depths.
When comparing leading models, professionals should consider factors such as depth range, signal strength, and ease of use. The following table outlines key features of top underground wire locator brands:
Brand
Depth Range
Signal Strength
Special Features
Quinn Equipment
Up to 30 feet
High
Steel detection, sand penetration
Leica GeoSystems
Up to 50 feet
Very High
Multi-frequency, GPS integration
The search ends. Now, the real work begins. Let's examine the top underground wire locators available today.
Review the Top Underground Wire Locators on the Market
This section evaluates top underground wire locators, examining their features, capabilities, and user experiences. It focuses on signal strength, measurement accuracy, and calibration processes. The analysis covers radio frequency technologies and ground penetration abilities, providing insights into device performance across various soil conditions.
Assess Features and Capabilities of Popular Devices
Quinn Equipment offers underground wire locators with advanced features such as inductive coupling technology. This feature allows users to locate utilities without direct connection, enhancing efficiency in scenarios where access points are limited. The devices' robust plastic housings provide durability for demanding job site conditions.
Leading wire locator models incorporate fuse protection systems to safeguard internal components from electrical surges. This feature extends the device's lifespan and ensures consistent performance, even when exposed to varying voltage levels in underground utilities. Some units also include removable skins for easy maintenance and customization.
Innovative cart designs have revolutionized the usability of underground wire locators. These carts allow operators to maneuver the equipment easily across various terrains, reducing fatigue during extended locating sessions. The integration of multiple sensors on these carts enables simultaneous detection of different utility types, streamlining the locating process.
Consider User Experiences and Ratings
Electrical contractors have reported positive experiences with Quinn Equipment's underground wire locators when working in water-laden environments. These devices maintain accuracy in wet conditions, allowing professionals to detect power cables efficiently. Users appreciate the locators' ability to penetrate through water-filled trenches, enhancing safety on job sites.
Manufacturing professionals have noted the durability of Quinn Equipment's wire locators in harsh industrial settings. The robust construction withstands frequent use in challenging environments, providing reliable performance for locating underground utilities. Users highlight the devices' consistent accuracy when detecting buried power cables, even in areas with high electromagnetic interference.
Feedback from field technicians indicates that Quinn Equipment's wire locators offer intuitive operation and clear displays. These features enable quick identification of buried utilities, reducing project timeframes and improving overall efficiency. Users particularly value the locators' ability to differentiate between various types of underground infrastructure, including water lines and electrical conduits.
Consider User Experiences and Ratings
Electrical contractors have reported positive experiences with Quinn Equipment's underground wire locators when working in water-laden environments. These devices maintain accuracy in wet conditions, allowing professionals to detect power cables efficiently. Users appreciate the locators' ability to penetrate through water-filled trenches, enhancing safety on job sites.
Manufacturing professionals have noted the durability of Quinn Equipment's wire locators in harsh industrial settings. The robust construction withstands frequent use in challenging environments, providing reliable performance for locating underground utilities. Users highlight the devices' consistent accuracy when detecting buried power cables, even in areas with high electromagnetic interference.
Feedback from field technicians indicates that Quinn Equipment's wire locators offer intuitive operation and clear displays. These features enable quick identification of buried utilities, reducing project timeframes and improving overall efficiency. Users particularly value the locators' ability to differentiate between various types of underground infrastructure, including water lines and electrical conduits.
The right tool is only half the battle. Knowing how to use it safely can make all the difference.
Use an Underground Wire Locator Effectively and Safely
Effective and safe use of underground wire locators requires proper worksite preparation and adherence to operating guidelines. This section covers essential steps for preparing the worksite, including considerations for engines, pipes, and metal objects. It also provides step-by-step instructions for operating the locator, addressing key components like amplifiers and circuit breakers.
Prepare the Worksite Before Beginning Locating
Before using an underground wire locator, professionals must prepare the worksite to ensure accurate utility detection. This involves clearing the area of metal objects that could interfere with the locator's signal. Operators should also identify and mark any visible utility access points, such as manholes or valve boxes, to provide reference points for the locating process.
Soil conditions play a crucial role in the effectiveness of wire locators. Technicians should assess the soil type and moisture content, as these factors can affect signal propagation. In areas with high soil pressure or compaction, additional steps may be necessary to enhance signal penetration and improve detection accuracy.
Proper calibration of wire locators is essential for reliable results. Operators should perform a calibration check using known utility locations or test points before beginning the locating process. This calibration ensures the device is accurately measuring depth and position, minimizing the risk of false readings or missed utilities. The calibration process typically involves the following steps:
Select a known utility location
Set up the locator according to manufacturer specifications
Verify depth and position readings
Adjust settings if necessary
Document calibration results for future reference
Follow Step-by-Step Operating Guidelines
Operators should begin by setting the wire locator's sensor to the appropriate frequency for the target utility. This step ensures optimal detection of copper wires or other conductive materials. The chosen frequency affects the device's ability to penetrate different soil types and detect utilities at various depths.
Next, technicians must adjust the locator's voltage settings to match the expected signal strength of the buried utilities. This calibration helps filter out background noise and improves the accuracy of depth measurements. Proper voltage adjustment is crucial for detecting low-power signals from non-energized lines or weak transmissions through challenging soil conditions.
Finally, operators should systematically sweep the area, paying close attention to the locator's information display and audio signals. As the sensor detects underground electronics, technicians must mark the utility's location and depth according to industry standards. This process may require multiple passes to ensure all buried utilities are accurately identified and mapped.
Safety matters. But knowing what not to do is just as crucial.
Avoid Common Mistakes When Locating Underground Wires
Accurate underground wire location requires understanding factors that affect detection and applying best practices. This section examines common issues impacting locator performance, such as power supply interference and environmental conditions. It also covers proven techniques for reliable results, including proper equipment use and site preparation methods used in the United States.
Recognize Factors That May Affect Detection Accuracy
Electromagnetic interference from nearby power sources can significantly impact underground wire locator accuracy. Relay stations and high-voltage transmission lines may create distortions in the locator's signal, leading to false readings. Operators must be aware of these potential sources and adjust their techniques accordingly to ensure precise detection.
The composition of underground conduits can affect signal propagation and detection accuracy. Polyvinyl chloride (PVC) pipes, for instance, do not conduct electromagnetic signals as well as metal conduits, making them more challenging to locate. Technicians should consider the types of materials used in underground infrastructure when selecting locator frequencies and interpreting results.
Signal velocity through different soil types can influence the depth accuracy of wire locators. Variations in soil moisture, density, and mineral content can alter the speed at which electromagnetic waves travel, potentially leading to inaccurate depth measurements. Operators should calibrate their equipment's antenna settings based on local soil conditions to optimize detection performance and ensure reliable depth estimates.
Apply Best Practices for Reliable Results
Technicians should employ a multi-frequency approach when locating underground wires to enhance detection accuracy. By using different frequencies, operators can locate various types of utilities, including electrical cables and coaxial cables. This method proves particularly effective when dealing with complex underground infrastructures that may contain both metallic and non-metallic conduits.
Proper grounding techniques are essential for reliable underground wire location. When locating electrical conduits or fence wiring, operators must establish a solid ground connection to minimize signal loss and improve detection range. This practice helps prevent short circuits and ensures accurate depth measurements, especially in areas with high soil resistivity.
Operators should conduct regular equipment maintenance and calibration to ensure optimal performance of underground wire locators. This includes checking for worn or damaged components, such as antennas or sensor heads, which can affect the device's ability to detect buried utilities accurately. Regular maintenance helps prevent false readings and improves the overall reliability of locating electrical cables and other underground infrastructure.
The job's not done when you've found the wires. Your tools need care too.
Maintain and Care for Your Underground Wire Locator
Proper maintenance of underground wire locators ensures optimal signal processing and extends equipment lifespan. This section covers routine calibration techniques, including headphone checks, and storage practices to protect electronic components. Adhering to these guidelines helps maintain accuracy in locating underground utilities for home improvement and electrical projects.
Perform Routine Calibration and Maintenance
Regular calibration of underground wire locators ensures accurate detection of electrical conduits and pipelines. Technicians should perform calibration checks before each use, comparing the locator's readings to known utility positions. This process helps maintain the device's precision, crucial for projects involving Robotic Total Stations and complex underground infrastructure.
Maintenance of wire locators includes inspecting and cleaning sensor components to prevent signal interference. Operators should examine the antenna and receiver for any damage or debris that could affect performance. Proper care of these elements enhances the locator's ability to detect underground utilities, complementing the accuracy of total station measurements in construction layouts.
Quinn Equipment recommends scheduling professional maintenance for wire locators annually. This service typically involves comprehensive diagnostics, firmware updates, and recalibration of sensitive components. Regular professional maintenance ensures optimal performance and longevity of the equipment, supporting efficient detection of electrical and pipeline systems in various soil conditions.
Store Equipment Properly to Extend Its Lifespan
Proper storage of underground wire locators is crucial for maintaining their accuracy and extending their lifespan. Quinn Equipment recommends storing devices in a dry, temperature-controlled environment to protect sensitive electronic components. Avoiding extreme temperatures and humidity helps prevent damage to internal circuits and sensors, ensuring reliable performance during utility detection tasks.
Technicians should use padded cases or protective covers when transporting wire locators between job sites. These accessories shield the equipment from impacts and vibrations, reducing the risk of misalignment or damage to calibrated components. Proper storage and transportation practices contribute to the longevity of wire locators, supporting their use alongside total stations in construction layout projects.
Regular inspection of storage conditions is essential for maintaining wire locator functionality. Operators should check for signs of corrosion on battery contacts and ensure all connections are clean and secure. Proper care of these elements helps preserve the equipment's ability to detect underground utilities accurately, complementing the precision of Robotic Total Stations in construction and surveying applications. Recommended storage practices include:
Keep devices in a cool, dry place away from direct sunlight
Remove batteries during extended periods of non-use
Store accessories separately to prevent tangling or damage
Use desiccant packets in storage cases to control moisture
Conduct monthly checks for any signs of deterioration or pest intrusion

Quinn Equipment, Inc. was founded in 1967 by Charles and Marjorie Quinn to represent manufacturers in the distribution of construction related products.
What is a wire locator used for in construction projects?
A wire locator is used in construction projects to find and trace underground cables and pipes accurately. By placing a signal on a cable, the locator operator can track its direction, helping to prevent costly mistakes and ensuring efficient and safe excavation or repair work.
Are underground wire locators affected by soil types?
The effectiveness of underground wire locators can be impacted by different soil types. Good conductor connections and soil conditions are essential for accurate readings. It's recommended to account for soil consistency and composition to avoid erroneous results.
Are underground wire locators compatible with GPS devices?
Underground wire locators are not directly compatible with GPS devices. However, some advanced locator models may integrate with field controllers and mobile devices, which can have GPS functionality for mapping and tracking purposes during utility locating tasks.
Can a wire locator be used for DIY electrical projects?
Yes, a wire locator can be used for DIY electrical projects to trace cables and locate underground assets. This tool can help identify target locations and depths accurately, enhancing efficiency and productivity in various applications.
What is the average cost of an underground wire locator?
The average cost of an underground wire locator can vary depending on the brand and model. Prices typically range from $800 to $3,600 for underground wire locators, with some specialized packages costing more. Additional accessories or attachments may also influence the total cost. It's important to consider the specific features and capabilities you need when determining the price point that suits your requirements.
How does a wire locator detect underground cables?
A wire locator detects underground cables by placing an electrical signal on the traced cable using a transmitter, which is then picked up by the receiver. This allows the operator to track the signal's direction and follow the located cable accurately.
Can a wire locator be used for plumbing detection?
Yes, a wire locator can be used for plumbing detection with a compatible receiver that can detect the field produced by the current. It's commonly known as conductive or inductive detection, allowing for tracing plumbing lines in specific conditions.
What is the range of a wire locator device?
Wire locator devices typically have a range of up to several feet, depending on the model and environment. The accuracy and effectiveness of the device may vary based on factors like signal strength and interference.
Are wire locators safe to use near power lines?
Wire locators are safe to use near power lines as they operate on low voltage and current levels, posing no risk of electrical shock. However, caution is advised to prevent accidental contact with live power lines to ensure safety while working. Always follow safety guidelines and use proper protective equipment when working near power lines to avoid any potential hazards.
What types of wires can a wire locator detect?
A wire locator can detect various types of wires, including electrical cables, telecommunication cables, and pipes carrying signals. These devices work by placing an electrical signal on the traced cable, allowing operators to track and locate underground assets.
How accurate are wire locator devices?
Wire locator devices provide accurate underground asset identification. Their capabilities vary based on the model and technology used, allowing for precise tracing and depth determination in various soil conditions. It's crucial to follow proper procedures and select the right frequency to ensure optimal accuracy and efficiency.
Can a wire locator be used for long-distance tracing?
Wire locators can typically be used for long-distance tracing by following the signal strength transmitted along the wire. The receiver enables tracking even over extended distances, aiding in locating underground cables or pipes effectively. Consider factors such as signal strength and limitations for optimal results.
Are underground wire locators safe to use?
Using underground wire locators is generally safe when following proper guidelines and safety precautions. Ensure correct grounding, use appropriate frequency, and consider soil conditions. Adhering to manufacturer instructions and proper training will help avoid costly mistakes and ensure safety.
How do underground wire locators account for cable depth?
The locator operator tracks cable depth by placing a signal on the cable with a transmitter and using a receiver to detect the signal. This method allows the operator to follow the cable's direction accurately underground.
What types of wires can be located?
Various types of wires can be located using underground wire locators, including electrical cables, communication cables, and utility pipes. These locators are versatile tools designed to detect and trace a wide range of buried assets accurately and efficiently.
What is the accuracy of underground wire locators?
The accuracy of underground wire locators depends on factors like signal strength, interference, and ground conditions. Different models offer varying levels of precision, with Leica DD 230 SMART Utility Locators Solution providing deep, fast, and accurate identification of underground assets.
Can underground wire locators detect non-metallic pipes?
Yes, underground wire locators can detect non-metallic pipes using inductive or conductive methods. Inductive clamps can pick up signals from non-metallic pipes, allowing for accurate tracing. Conductive methods may not work on non-metallic pipes, but inductive methods offer a reliable alternative for detection.
Can underground wire locators detect abandoned cables?
Yes, underground wire locators can detect abandoned cables as long as the cables still have conductive properties. The locators provide the ability to trace and identify cables underground, regardless of their current usage status, making them useful for detecting not only active but also abandoned cables depending on their condition.
What is the most affordable underground wire locator?
The most affordable underground wire locator mentioned in the article is the Futtura BL-102 priced at $835. It provides a cost-effective option for users looking for a budget-friendly solution for wire locating needs.
Can it be used for commercial or residential purposes?
The underground wire locators mentioned can be used for both commercial and residential purposes, offering efficient and accurate utility locating solutions for various applications. Whether it's for construction projects, property maintenance, or utility installations, these tools cater to a wide range of needs in both commercial and residential settings.
Do underground wire locators have a carrying case?
Some underground wire locators come with carrying cases for convenient storage and transportation. However, the inclusion of a carrying case may vary depending on the specific model or package purchased. It's recommended to check the product specifications or contact the manufacturer for detailed information about whether a carrying case is included with the underground wire locator you are interested in.
How does an underground wire locator work?
An underground wire locator works by placing an electrical signal on the cable using a transmitter. The receiver then picks up the signal, allowing the operator to track the cable's direction. This method helps locate buried cables accurately by following the traced signal's path.
What is an underground wire locator used for?
An underground wire locator is used to trace and identify buried cables or pipes by transmitting an electrical signal through the cable, which is then detected by a receiver. It helps locate, map, and avoid damaging hidden utilities during construction or maintenance projects.
Can a wire locator detect wires behind walls?
Wire locators are designed to track electrical signals on traced cables underground. They are not typically used to detect wires behind walls. For locating wires behind walls, specialized tools like stud finders or thermal imaging cameras are more appropriate.
What are the limitations of a wire locator device?
Limitations of a wire locator device include reduced accuracy in high-frequency settings, reliance on good conductor connections and soil conditions, and the potential for current leakage to the ground at higher frequencies. It's essential to ensure proper circuit completion and ground connection for optimal performance.
What are the benefits of using an underground wire locator?
Using an underground wire locator offers the following benefits:
- Precision in identifying underground assets
- Speed in locating wires and pipes
- Enhanced accuracy compared to manual methods
- Efficiency in detecting target location, depth, and tracing distance
- Versatility for various applications
Can it locate wires underwater?
The Leica DD 230 SMART Utility Locator is designed for underground wire locating only and is not suitable for locating wires underwater. It utilizes signals transmitted through cables buried underground to accurately trace and identify underground assets, making it specifically tailored for underground wire locating tasks.
Can it detect broken or damaged wires?
The underground wire locators mentioned can typically detect the presence and location of wires but may not always specifically identify broken or damaged wires. Detection depends on various factors like signal strength and wire condition. Regular maintenance and proper usage can help prevent wire damage.
Can underground wire locators detect fiber optic cables?
Yes, underground wire locators can detect fiber optic cables, but they require specialized equipment designed to trace and locate fiber optic cables specifically. These locators use a different method to detect the presence and location of fiber optic cables compared to traditional electrical cables.
How do I maintain a wire locator device?
To maintain a wire locator device, regularly clean the device and accessories, ensure proper storage, calibrate the equipment as recommended by the manufacturer, inspect for any damage or wear, and follow proper usage guidelines to prolong the device's lifespan and maintain accuracy.
Can underground wire locators detect cables underwater?
The underground wire locators described in the article are not designed to detect cables underwater. They are specifically engineered for locating underground assets like cables, pipes, and wires buried beneath the soil. Operating these devices underwater may not yield accurate results due to the differing nature of the medium.
Do underground wire locators come with warranty?
Most underground wire locators come with a warranty, typically ranging from one to three years. It is important to check the specific warranty terms and conditions provided by the manufacturer when purchasing a locator to ensure coverage for any potential issues or defects.
Can a wire locator detect faults in electrical systems?
A wire locator can detect faults in electrical systems by tracing the path of underground cables, identifying breaks, and determining the depth of the wires. This process helps in pinpointing issues for repair and maintenance purposes effectively.
What is the difference between a wire locator and a cable tester?
A wire locator is used to trace underground cables by placing a signal on the cable and using a receiver to track it, while a cable tester is used to check the integrity and connectivity of cables through direct or indirect testing methods.
How do underground wire locators distinguish between wires?
Underground wire locators distinguish between wires by placing electrical signals on traced cables using a transmitter. The receiver then picks up these signals, allowing the operator to track the direction and locate the cables accurately. This method helps in detecting underground assets efficiently.
What are the benefits of using a wire locator?
Using a wire locator offers benefits like accurate asset identification, faster locating, and enhanced productivity. It allows for precise determination of target location, depth, and tracing distance, improving efficiency. Furthermore, wire locators facilitate detecting underground assets, which can prevent costly mistakes during excavation or construction projects.
How deep can underground wire locators detect?
Underground wire locators can typically detect depths ranging from 6 to 30 feet, depending on the specific model and soil conditions. More advanced models, like the Leica DD 230 SMART Utility Locator Solution, can accurately identify assets at greater depths of up to 30 feet.
Do underground wire locators detect pipes too?
Yes, underground wire locators can also detect pipes using inductive or conductive methods. Inductive mode is suitable when direct access to the pipe is not possible, allowing for accurate location without physical contact. Conductive mode requires a direct connection for detection, providing a precise way to identify pipes underground.
Can a wire locator be used for telephone line detection?
A wire locator can be used to detect telephone lines by placing an electrical signal on the cable and tracking it with the receiver. This method works for various underground utilities, including telephone lines, making it suitable for telephone line detection.
Can a wire locator detect non-metallic pipes?
Wire locators primarily detect metallic pipes. For non-metallic pipes, a transmitter clamp is used. This clamp sends an electrical signal through the pipe, allowing the receiver to track it underground.
What frequencies do underground wire locators use?
Underground wire locators typically start with the lowest frequency possible to detect signals. Higher frequencies cause quicker current leakage to the ground. It's crucial to consider good conductor connections and soil conditions for effective signal tracing.
Are underground wire locators suitable for industrial use?
Underground wire locators are suitable for industrial use, offering precise detection of underground assets. Key features like target depth and tracing distance make them valuable tools for industrial applications. These locators are essential for preventing costly mistakes in construction and utility projects.
How do I choose the right wire locator for my needs?
When selecting a wire locator, consider the depth, accuracy, and required features. Determine if you need direct mode or a different tracking method based on access to the underground cable. Assess soil conditions and use the lowest frequency possible for better detection. Consult with experts for guidance on the right tool for your specific requirements.
How does an underground wire locator detect buried cables?
The underground wire locator places an electrical signal on the cable being traced, which is picked up by the receiver to track the signal's direction. This method helps operators locate buried cables accurately by following the path the signal travels underground.
What is the best underground wire locator for DIY projects?
For DIY projects, the Leica DD 220 SMART Utility Locator is a great choice due to its user-friendly design, Bluetooth technology, and accurate identification of underground assets. It offers scalability and efficiency, making it ideal for DIY use.
What is the cost of a wire locator device?
The cost of wire locator devices varies depending on the model and features. Prices for underground wire locators can range from around $835 to $3,640, with additional accessories available for purchase separately. Specific equipment like the Leica DD 230 SMART Utility Locator Solution is priced at $3,640.
How does a wire locator work with multiple wires?
A wire locator works with multiple wires by placing an electrical signal on the traced cable using a transmitter. The receiver picks up the signal, allowing operators to track the direction of each wire individually. This enables precise identification and tracing of multiple underground wires simultaneously.
How deep can underground wire locators detect cables?
Underground wire locators can typically detect cables up to depths ranging from a few inches to several feet, depending on the specific model and brand. Factors such as the type of soil, presence of other utilities, and the frequency used can also impact detection depth.
Are underground wire locators compatible with other tools?
Underground wire locators are often compatible with other tools such as receivers, transmitters, and detection accessories used in utility locating. This compatibility allows for enhanced functionality and efficiency when tracing underground assets, making it easier to pinpoint target locations and depths.
Is it necessary to calibrate the device?
Calibrating the underground wire locator device is crucial to ensure accurate readings. Proper calibration enhances the precision of locating underground assets, preventing costly errors. Regular calibration maintenance is recommended to maintain the device's reliability and functionality, ultimately optimizing performance.
Can underground wire locators detect electrical wires only?
Yes, underground wire locators can detect various types of wires, including electrical wires, communication cables, and utility lines. These locators work by transmitting a signal through the traced cable, which is then picked up by the receiver, allowing operators to track and locate the buried wires accurately.
Can it be used in wet or humid environments?
The Leica DD 230 SMART Utility Locators Solution can be used in wet or humid environments due to its design and durability, making it suitable for various weather conditions and underground situations.
Is training required to use the device?
Training is recommended for optimal use of the underground wire locator devices. Understanding the features, proper connection methods, and frequency settings can enhance accuracy and efficiency. Seek guidance from manufacturer resources or professional training to avoid errors and maximize utility locator functionality.
How do underground wire locators reduce false readings?
Underground wire locators reduce false readings by using conductive, inductive, and inductive clamps to detect the current's field, ensuring accurate tracing. Starting with the lowest frequency reduces current leakage and improves accuracy, especially in good conductor connections and favorable soil conditions.
How do environmental factors impact wire locators?
Environmental factors like soil conditions, conductor connections, and frequency used can influence the effectiveness of wire locators. Conductivity of the ground affects signal transmission, and good connections are crucial. Starting with the lowest frequency helps minimize signal leakage into the ground, improving accuracy.
Can personal underground wire locators be rented?
Underground wire locators, like the Leica DD220 SMART Utility Locator, can typically be rented from equipment rental companies or specialized tool rental businesses. It's advisable to inquire about rental availability and pricing from local rental providers to access these tools on a short-term basis for personal use. Remember that renting such equipment should be accompanied by proper training for safe and efficient operation.
Do wire locators require specialized batteries?
Wire locators do not require specialized batteries. Standard, readily available batteries like AA or AAA are typically used in underground wire locators for convenience and easy replacement when needed. Make sure to check the specific model's manual for battery requirements.
Are there multi-functional underground wire locators?
Yes, there are multi-functional underground wire locators available in the market. These locators offer features such as automatic identification of underground assets, scalable design, Bluetooth technology for wire-free connection, and the ability to determine target location, depth, and tracing distance effectively. Some popular options include the Leica DD 230 SMART Utility Locators Solution and the Leica DD 220 SMART Underground Utility Locator.
What maintenance do wire locators need?
Wire locators require regular maintenance to ensure optimal performance. Some maintenance tasks include cleaning the equipment after each use, inspecting cables for any damage, calibrating the unit as needed, and replacing batteries when they are low. Regular maintenance will help prolong the lifespan of the wire locator and ensure accurate results during operation.
How to troubleshoot a faulty wire locator?
To troubleshoot a faulty wire locator, follow these steps:
1. Check the batteries and replace if needed.
2. Ensure the transmitter and receiver are properly connected.
3. Verify the cables for any damage.
4. Test the unit in different locations to rule out interference.
5. Contact the manufacturer for further assistance if issues persist.
Do wire locators work on all terrains?
Wire locators work effectively on various terrains including soil, concrete, grass, and pavement. They can locate underground wires and cables in different environments, making them versatile tools for utility locating across diverse landscapes.
Can wire locators interface with smartphones?
Wire locators like the Leica DD 230 SMART Utility Locators Solution can interface with smartphones via Bluetooth technology, enabling wire-free connections to field controllers and mobile devices. This feature enhances productivity and efficiency in locating underground assets.
How to increase wire locator accuracy?
To increase wire locator accuracy, follow these steps:
Ensure proper ground connections.
Start with the lowest frequency possible.
Use good conductor connections and soil conditions.
Remember that higher frequencies leak current to the ground quicker.
Do wire locators need regular updates?
Wire locators typically do not need regular updates in terms of software or firmware. However, it is important to ensure that the equipment is well-maintained, calibrated, and in good working condition to provide accurate and reliable results during underground utility locating operations. Regular maintenance checks are recommended to keep the wire locators functioning effectively.
What are common wire locator malfunctions?
Common wire locator malfunctions include:
Poor conductor connections.
Bad soil conditions affecting signal detection.
Improper ground implementation leading to inaccurate readings.
Signal leakage due to high frequencies.
Can wire locators identify cable type?
Wire locators can detect the presence of underground cables but do not typically identify the specific cable type. They are used to trace the path and locate buried cables, helping to prevent accidental damage during excavation or maintenance work.
Do wire locators work on concrete surfaces?
Wire locators typically do not work on concrete surfaces as they rely on the transmission and reception of electrical signals through buried cables. Concrete impedes the signal's ability to penetrate and be detected effectively, reducing accuracy and functionality.
Are wire locators effective in urban areas?
Underground wire locators are effective in urban areas where utility lines are densely packed. However, urban environments with high levels of electromagnetic interference can pose challenges in accurately tracing underground cables, affecting effectiveness. Additional caution and expertise may be required when using wire locators in such environments.
What certifications do wire locators have?
Wire locators may have certifications such as NCCCO, NALP, IUEC, or OSHA to ensure operators are trained in safely and effectively using the equipment. These certifications demonstrate expertise and compliance with industry standards.
Can underground wire locators withstand extreme temperatures?
Underground wire locators are designed to withstand a range of temperatures, including extreme conditions. However, it's essential to consider the specific manufacturer's specifications for temperature limitations to ensure proper functioning and longevity of the equipment.
How to dispose of old wire locators?
To dispose of old wire locators, consider recycling them at electronic waste recycling facilities. Contact local recycling centers for proper disposal guidelines. Ensure all batteries are removed before recycling. Alternatively, you can donate them to organizations that refurbish electronic equipment or sell them for parts.
Do wire locators require special training?
Wire locators do require special training to effectively and safely locate underground cables. Operators need training to understand how to use the equipment, interpret signals, and ensure accurate results. Specialized training helps prevent costly mistakes and ensures efficient utility locating.
What is the lifespan of a wire locator?
The lifespan of a wire locator can vary depending on usage and maintenance. With proper care, quality underground wire locators can last for many years, providing accurate and efficient service for locating buried cables or pipes. Conducting regular maintenance and following manufacturer guidelines can help prolong the lifespan of a wire locator.
How to extend a wire locators range?
To extend a wire locator's range, consider these tips:
- Use a higher frequency for shorter distances.
- Ensure good conductor connections and soil conditions.
- Start with the lowest frequency possible for longer distances.
- Opt for additional accessories like trace rods for improved accuracy.
- Practice proper grounding techniques for optimal signal detection.
Are there wireless underground wire locators?
Some underground wire locators, like the Leica DD 230 SMART Utility Locators Solution, feature Bluetooth technology for wireless connection to field controllers and mobile devices. This wireless capability enhances productivity and ease of use in locating underground assets.
What are the alternatives to wire locators?
Some alternatives to wire locators include using ground penetrating radar (GPR) for non-invasive detection, hiring professional utility locating services, or utilizing metal detectors for surface-level identification. Each method has its own advantages depending on the specific needs of the project.
Can wire locators interfere with other devices?
Wire locators can potentially interfere with other devices, particularly electronic equipment, due to the electrical signals they emit. It's essential to be cautious and mindful of this possibility to avoid any disruptions while using wire locators near sensitive devices.
Is a wire locators signal adjustable?
Yes, the signal frequency on wire locators is adjustable. Starting with the lowest frequency is recommended, as higher frequencies leak current to the ground faster. Adjusting the frequency ensures accurate underground cable detection.
