Description

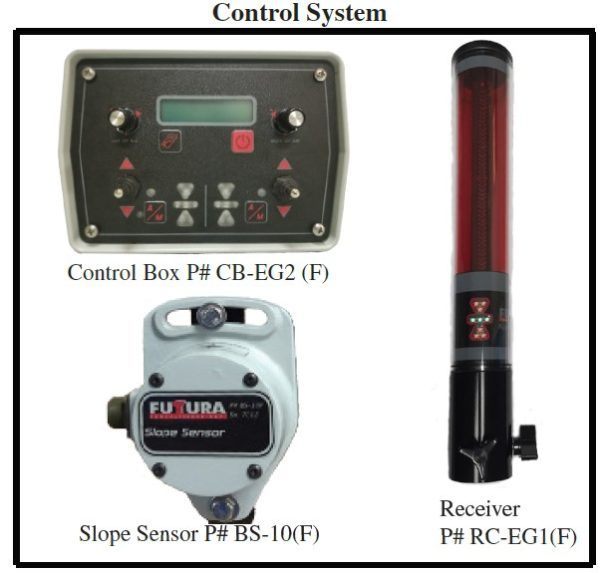

The EconoGrade Machine Control Systems were created to provide you with the greatest level of control over your grading system at a reasonable cost. A variety of devices, including box blades, box scrapers, graders, mini-graders, and skid steers, can be equipped with the EG Series. The system controls the majority of valve packages, providing the user with both an LED and a real-time LCD display so you are always aware of the position of the blade. The EG Series Receiver can detect any rotating red beam laser within its 173mm (7”) capture range, and in turn indicates the blade’s position to within a 2mm (5/64”) accuracy.
Explore high-end Machine Control at an economical cost! The Econograde Control Systems provide accurate grading results in less time with less labor. With cutting edge features, the EG2-D will put you in the driver’s seat.

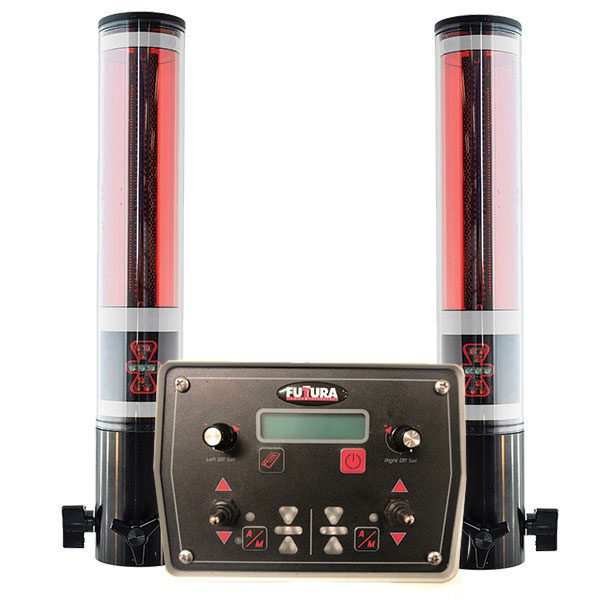

With dual receivers, the EG2-D makes grading to tight tolerances a breeze. The dual 360-degree receivers give maximum laser reception and the system is accurate down to 2mm. The ability to change “on-grade” on the fly makes the system a favorite with operators. The EG2-D is an excellent choice for fine grading for concrete slabs on commercial sites as well as residential sites.
Dual elevation controls a variety of skid steer attachments:
- Box blade
- Grader blade
- Dozer blade
- Push blade
System Specifications:
- Metal control box housing
- 7” of receiver capture height
- Adjustable on-grade offset

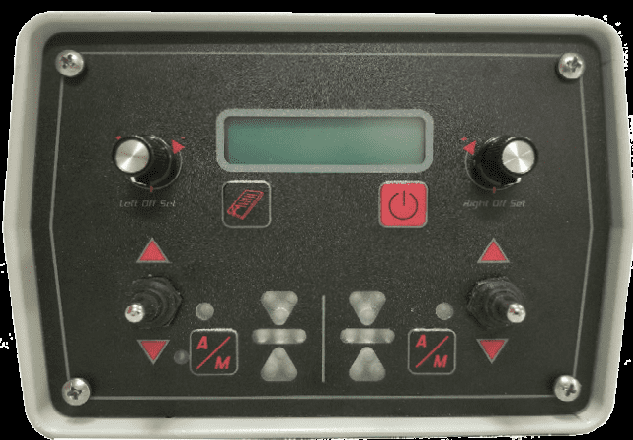

- LCD display screen for operator interface
- Easy to see LED grade indicator lights
