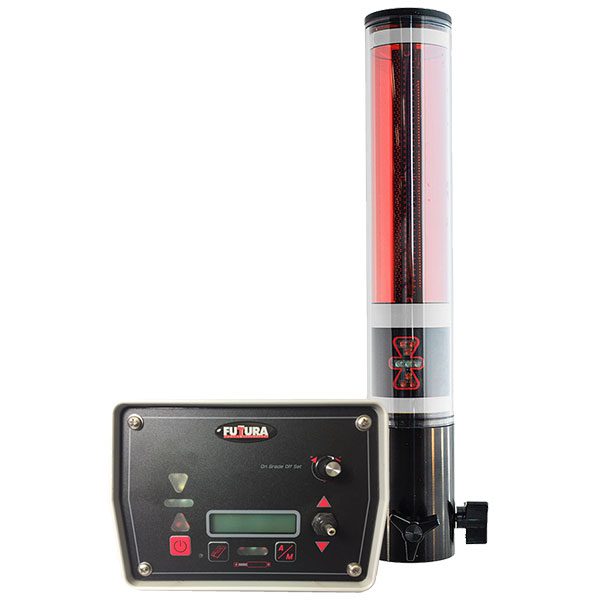

Futtura Econograde EG1-M System with Single Receiver

$3,295.00

Compare to Similar Products

Description

Explore high end Machine Control at low end cost! The EG1-M Laser Grade Control System provides accurate grading results in less time with less labor. With cutting edge features, the EG1-M will put you in the driver’s seat.

The system is versatile, efficient, economical & durable with easy to use controls!

The EconoGrade Machine Control System was designed to let you achieve maximum control of your grading system, at a very friendly price. The EG Series system is versatile, and can be installed on a number of machines including box blades, box scrapers, graders, mini-graders and skid steers.
The system controls any valve package, giving the user both LED and a real-time LCD display so you are always in touch with the blade position. The EconoGrade receiver can detect any rotating red beam laser within its 173mm (7”) capture range, and in turn indicates the blade’s position to within a 2mm (5/64”) accuracy.
The receiver has LED indicator lights that give the same output as the control box LED indicators. So whether you’re standing on the field, or driving the machine you’ll always know where your blade needs to be. The control box allows the user to configure the display to indicated variances from the on grade position in real time.
The receiver is able to attach to a 45mm (1 3/4”) standard pipe. The complete system requires 9 - 30vdc to operate. The valve output drive is rated for 5 amps.

The EconoGrade Series
currently consists of 4 levels:

  • EG1 System with plastic housing control box
  • EG1-M System with the same features and functionality of the EG1 with a rugged metal control box
  • EG2-D dual receiver control system
  • EG2-S single receiver & slope sensor control system
 Ideal for:
  • box blades
  • box scrapers
  • graders
  • skid steers
  • bull dozers

Applications:

  • field grading
  • lot leveling
  • laser screed
  • automated control

Specifications:

  • EG1-M system w/ Single Receiver +
  • plastic housing control box
  • 7” receiver capture height
  • Adjustable on-grade offset
  • LCD display screen
  • LED receiver indicator lights
