HitchDoc Fuel Trailers Overview
MODELS & SPECS:

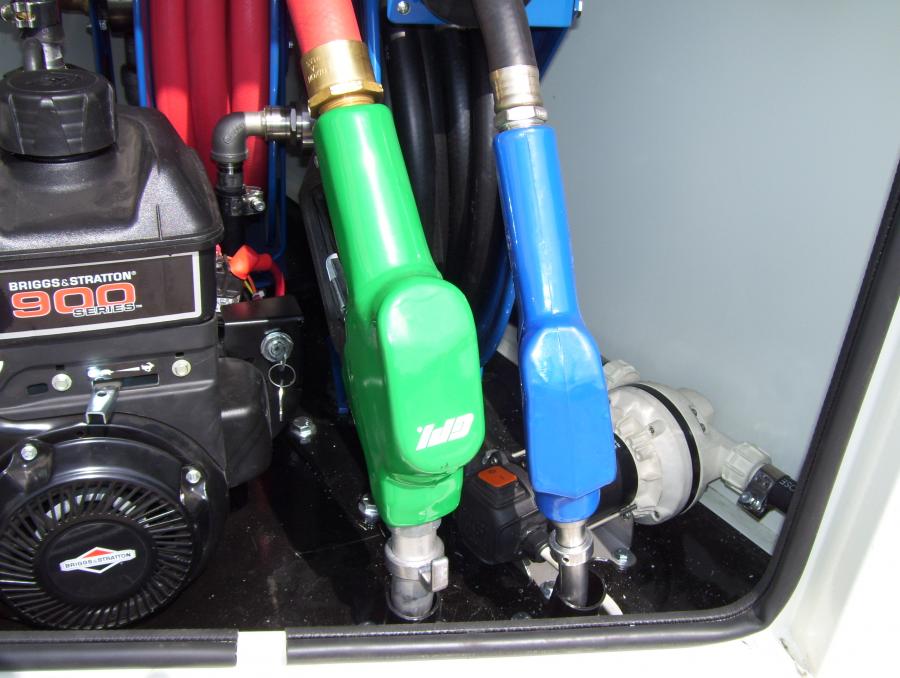

HFC 990XL Special Features: 40 GPM fuel pump, 300 gallon DEF tank, Electric DEF pump, Combination generator/air compressor/welder.
| Model | Capacity | Empty Weight | GVWR | Hose Dimensions | Tire Size | Dual Axles |
|---|---|---|---|---|---|---|
| HFC 500 | 500 gal. | 2,700 lbs. | 7,000 lbs. | 1”x20’ | 205/75/15 | 3,500 lbs. |
| HFC 750 | 750 gal. | 2,900 lbs. | 12,000 lbs. | 1”x20’ | 235/80/16 | 6,000 lbs. |
| HFC 990 | 990 gal. | 3,100 lbs. | 12,000 lbs. | 1”x20’ | 235/80/16 | 6,000 lbs. |
| HFC 990XL | 990 gal. | 12,000 lbs. | 1”x35’ | 235/80/16 | 6,000 lbs. |
HFC500-$9,125
HFC750-$10,250
HFC990-$11,075
HFC990XL-$22,625
Standard Features
- 12 volt fuel pump with 15 GPM
- 2” anti-slosh tank filler cap with 2.5 PSI vents
- 1 ½” Drain plug
- Adjustable 2 5/16” ball hitch
- 7,000 lb. square lift jack with bolt-on plate for removal
- Bolt-On Fenders – easy to replace if damaged
- 10 Micron Fuel Filter
Options
| Nose Cone Storage Compartment HFC500 | HFC460 | $1,185 |
| Nose Cone Storage Compartment HFC750 | HFC461 | $1,545 |
| Nose Cone Storage Compartment HFC990 | HFC462 | $1,960 |
| 25 GPM 12V Pump HFC500 | HFC445 | $415 |
| 26 GPM 12V Pump HFC750 | HFC446 | $415 |
| 27 GPM 12V Pump HFC990 | HFC447 | $415 |
| 40 GPM Fas Pump with Electric Start | HFC040 | $860 |
| 1"x35' Hose with Retractable Reel HFC750 | HFC468 | $980 |
| 1"x35' Hose with Retractable Reel HFC990 | HFC393 | $980 |
| 25 GPM Fuel Flow Meter | HFC463 | $305 |
| 50 GPM Fuel Flow Meter | HFC464 | $540 |
| 60 Gallon DEF Tank | HFC065 | $3,085 |
| 100 Gallon DEF Tank | HFC195 | $3,500 |
| 25' DEF Hose with Retractable Reel & Nozzle | HFC0635 | $925 |
| 110V DEF Heater | HFC030 | $860 |
| Heavy Duty Battery Kit(includes charger) | HFC020 | $200 |
| Solar Panel Charging kit | HFC028 | $715 |
| Aluminum Rims (NA for HFC500) | HFC008 | $580 |
| Custom one color paint | HFC005 | $335 |
| Rock Guard Kit HFC500 | HFC470 | $200 |
| Rock Guard Kit HFC750 | HFC471 | $230 |
| Rock Guard Kit HFC 990/XL | HFC472 | $260 |
| 3" Pintle Hitch | HFC469 | $55 |
|
HFC990XL Specific Additional Options | ||
| 300 Gallon DEF tank with Pump and Hose | HFC300 | $4,380 |
| Air Compressor/Generator/Welder | HFC316 | $5,750 |
| Tool Box(max 2 per unit) | HFC318 | $1,700 |
| Air/Electric Dual Reel | HFC315 | $960 |
| Weld Leads | HDW841 | $535 |
